48V 200Ah HESS Supplier: Voltage & Inverter Fit Guide

Choosing a 48V 200Ah HESS supplier starts with a deceptively simple question: what exactly does the voltage label describe? A battery rated at 48.0V and 200Ah has 9.6kWh of nominal energy. A 51.2V, 200Ah battery has 10.24kWh. Neither figure, by itself, tells you how much electricity will reach household appliances or whether the battery will work with your inverter.

For distributors, solar installers and brands sourcing home energy storage, that distinction affects quotations, product descriptions, installation design and customer expectations. A useful supplier comparison therefore connects four things: the exact battery configuration, the supported inverter, the intended household load and the documents supplied with the order.

This guide explains how to evaluate those connections and prepare a configuration-specific enquiry. Published Mottcell product details are identified separately from engineering calculations and illustrative planning examples. Calculations below are not laboratory results, an installation design or a guaranteed runtime for a particular Mottcell battery.

1. Define the 48V 200Ah battery before comparing quotations

The expression “48V battery” can identify a system voltage class rather than the precise nominal voltage printed on a battery's approved specification. This matters when buyers compare lithium batteries, replacement systems and different cell configurations using a short catalogue title. Ask for the actual nominal voltage, chemistry and series configuration together.

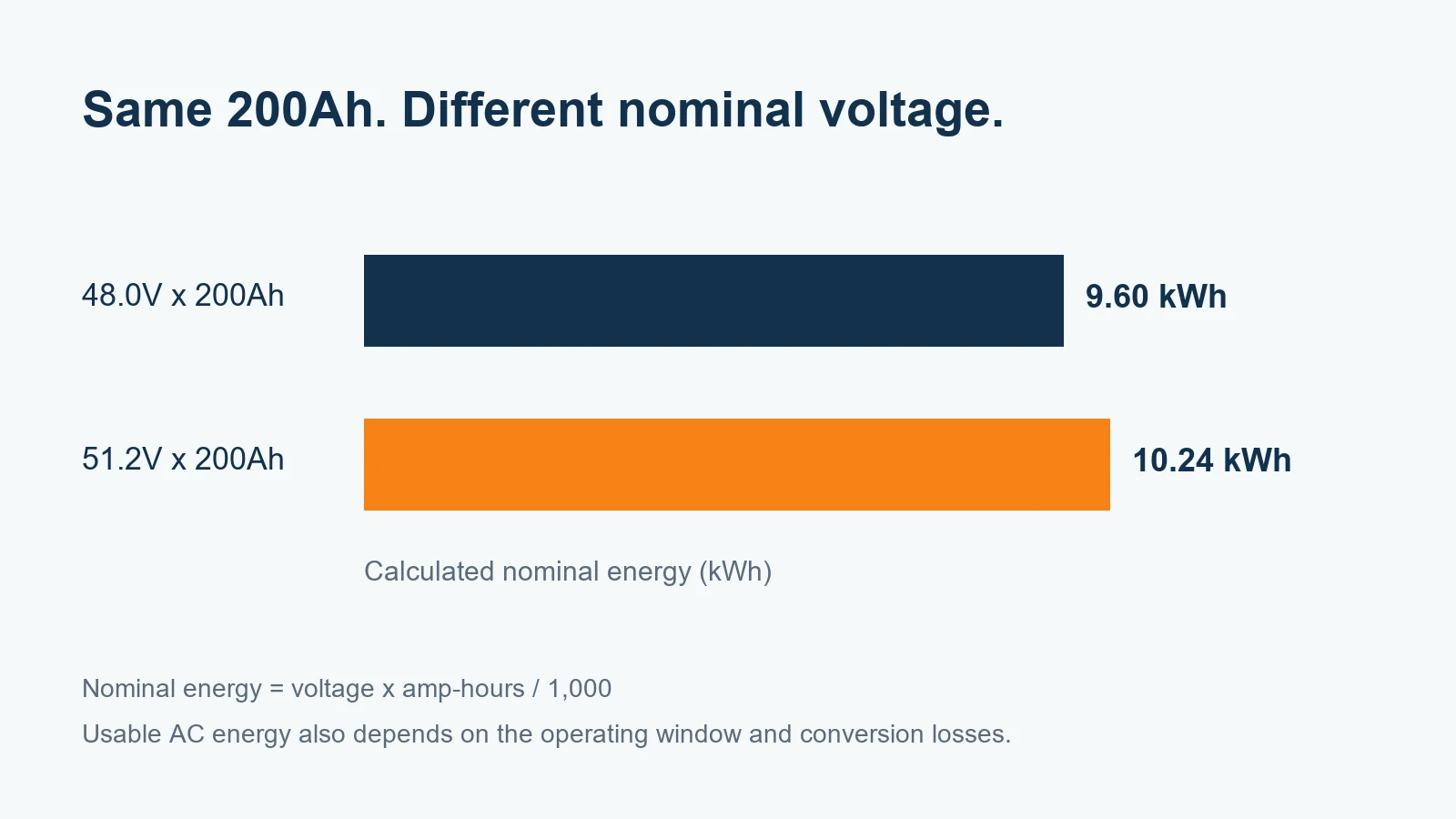

For a LiFePO4 cell with a nominal voltage of 3.2V, fifteen cells in series correspond to 48.0V nominal, while sixteen correspond to 51.2V nominal. These are nominal arithmetic relationships. They do not specify the charging voltage, cutoff voltage or permitted inverter settings. Those operating limits must come from the documentation for the delivered battery.

At a stated capacity of 200Ah, the nominal calculation is straightforward: energy in kWh = nominal voltage × amp-hours ÷ 1,000. The two examples differ by 0.64kWh, or approximately 6.7% relative to 9.6kWh. That difference is material when a purchasing team compares price per nominal kilowatt-hour, but it is only one part of a complete comparison.

An amp-hour rating also needs a stated test basis. Request the applicable discharge conditions, temperature, endpoint and acceptance tolerance. Two quotations using “200Ah” may describe different test conditions or delivery configurations. Align these definitions before interpreting a small difference in quoted energy or price as a product advantage.

2. Identify the relevant Mottcell configuration

The published Mottcell Energy Storage System product table lists the SMJ10KWh T01 with 200Ah cell capacity, a 16S software BMS and a charging/discharging current entry of 0–100A. Its listed enclosure is SPCC sheet metal, with dimensions shown as 453 × 960 × 154/185mm.

These entries provide a starting point for an enquiry. They do not resolve every procurement question. The two depth figures need clarification for the selected enclosure version, and the current entry needs to be matched to the actual operating conditions. Request a model-specific drawing and specification with a revision identifier before using either in an installation proposal.

If the confirmed configuration uses sixteen nominal 3.2V LiFePO4 cells in series, the calculation is 51.2V × 200Ah = 10.24kWh. That explains why a product sold within a 48V system category can appear in a 10kWh-class range. Treat the calculation as an explanation of the configuration, not a substitute for the rated energy declared for the supplied product.

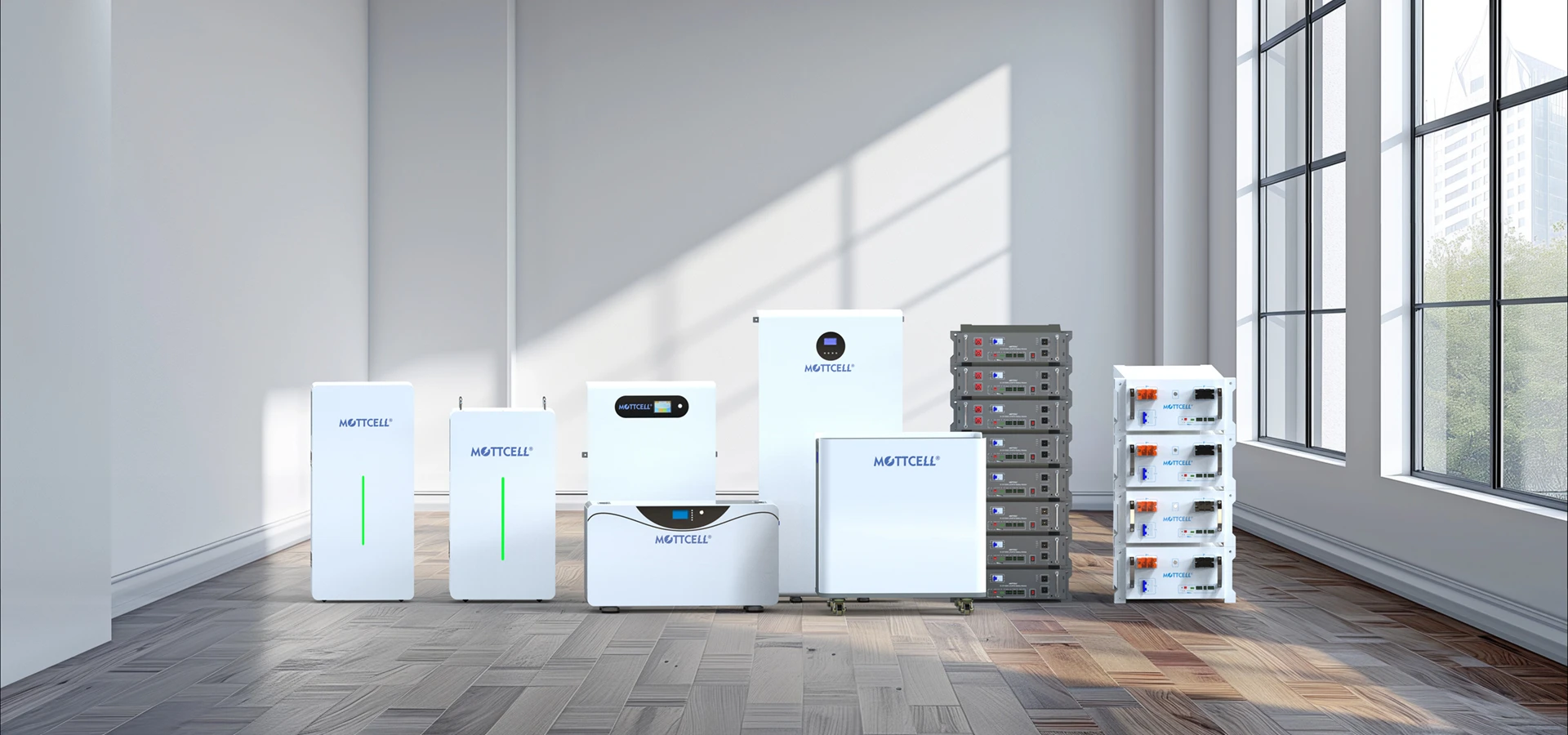

Mottcell also publishes a separate all-in-one energy storage range. A battery module and an integrated inverter-and-battery unit are different purchasing options. A battery-only quotation should identify the external inverter responsibility; an integrated quotation should identify the included inverter, AC specification and complete system boundaries.

For a broader comparison of those purchasing options, use the 10kWh home solar storage buying guide. The discussion here focuses on evaluating a 200Ah battery configuration and its interfaces, so that a short product label can be converted into an unambiguous order specification.

3. Separate nominal energy, usable energy and AC delivery

Nominal battery energy is useful for identifying a product class. Usable battery energy depends on the permitted state-of-charge window and the conditions under which capacity is measured. Electricity delivered on the AC side also depends on conversion losses, auxiliary consumption, operating temperature, battery condition and the actual load profile.

As a transparent planning example, assume a 51.2V, 200Ah battery, a 90% usable energy fraction and a 94% battery-to-AC conversion efficiency. Multiplying 10.24kWh × 0.90 × 0.94 gives approximately 8.66kWh of AC energy before separately accounting for any auxiliary consumption not included in that efficiency assumption. The percentages are illustrative inputs, not published performance guarantees.

Under those same assumptions, an average 1kW load would correspond to about 8.66 hours, while an average 2kW load would correspond to about 4.33 hours. Those calculations assume the load can be supported continuously, the battery starts at the agreed charge level and no solar energy is added during the period. Real household consumption rarely stays perfectly constant.

An installer should therefore distinguish an energy estimate from an equipment approval. A calculated runtime does not establish that a motor can start, that a cooker can run alongside other loads, or that an inverter supports the required backup circuit. Establish the permitted power envelope first, then estimate duration within that envelope.

For a purchasing brief, describe the expected starting charge level, minimum reserve, daily energy pattern and essential-load priorities. A household seeking evening solar use may have different requirements from one seeking overnight outage backup. The same nominal battery can produce very different outcomes under those two operating strategies.

4. Check output power and current separately from capacity

A 200Ah capacity rating does not mean 200A of continuous output, and a 10kWh energy label does not mean 10kW of output power. Amp-hours describe charge capacity. Amperes describe current. Kilowatt-hours describe energy. Kilowatts describe the rate at which energy is delivered. Mixing these units can lead to an unsuitable inverter recommendation.

For a simple DC-side calculation, 51.2V × 100A equals 5.12kW. This is arithmetic at the stated nominal voltage, not a guaranteed continuous AC output. Battery voltage changes during operation, the permitted current may vary, and conversion losses reduce the power available downstream. The binding limit is whichever relevant component or operating condition allows the least power.

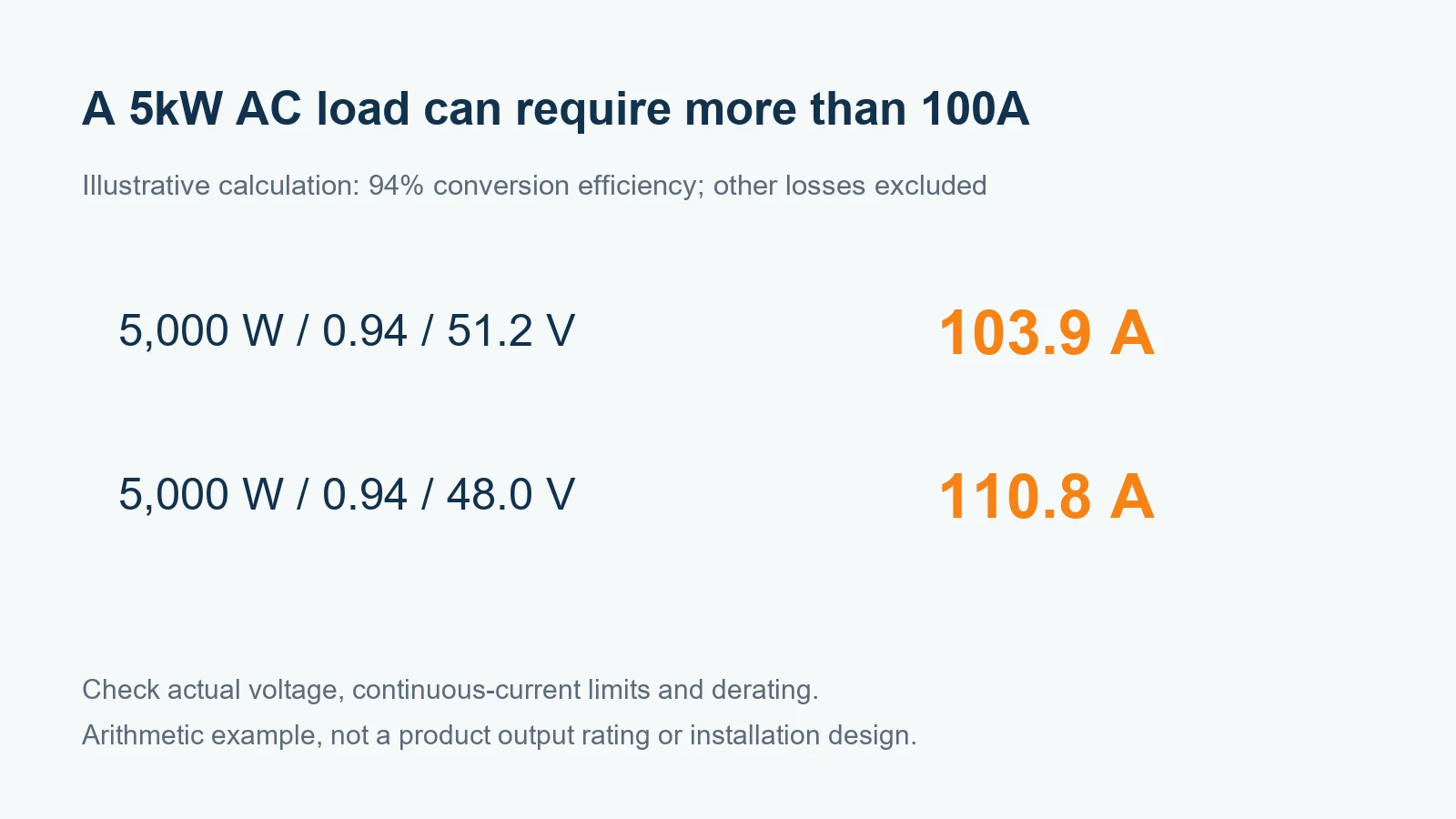

Consider another illustrative calculation: supplying 5kW AC at an assumed 94% conversion efficiency requires about 5.32kW at the DC input. At 51.2V, that corresponds to approximately 104A before other losses. At 48V, it corresponds to about 111A. These figures show why an inverter's headline power should not automatically be assigned to a battery with a 100A current entry.

The supplier should distinguish continuous current from short-duration peak current and state the duration and conditions for any peak figure. Ask how low state of charge, temperature or protection events affect available power. A short surge allowance cannot support a continuous load merely because its numerical current value looks adequate.

For the project, list simultaneous running loads and any startup demand. Then have the responsible installer evaluate the complete system: battery operating limits, inverter DC input capability, AC output, protective devices and the relevant installation requirements. A higher-capacity battery may extend duration without increasing the permitted power of the selected configuration.

5. Verify inverter compatibility as a complete interface

Voltage compatibility is the first check, but not the last. The inverter's accepted battery voltage window must be consistent with the battery's documented charge and discharge limits. The intended settings must also respect the battery's current limits and the control method supported by both devices. A matching “48V” label only establishes a candidate for review.

Communication needs its own confirmation. A connector or a communication standard name does not prove that two devices exchange the required messages correctly. Request the supported inverter model, firmware version, battery firmware or protocol selection, relevant cable definition and the supplier's configuration instructions. Record the exact combination tested for your project.

During a sample evaluation, observe how the system handles charge limits, discharge limits, state-of-charge reporting and normal start or stop commands. The responsible technical team should also use an agreed test procedure for communication interruptions and recovery. The purpose is to establish predictable behavior, not to bypass protective controls to make an unsupported pairing appear functional.

If an existing inverter is already installed, provide its complete model designation rather than a brand name alone. Photographs of the model plate and the relevant settings page can help the supplier identify the configuration, but they do not replace a formal compatibility decision. Include the destination market because variants sold under similar names may differ.

Where compatibility remains unresolved, compare the practical cost of further integration work with a documented integrated-system option. The choice should account for support responsibility and future service as well as the initial equipment price. Keep responsibility for battery settings, inverter settings and commissioning clearly assigned in the purchase documents.

6. Plan installation space, environment and future expansion

Before requesting an enclosure option, identify the proposed installation location and its constraints. Include usable wall or floor space, access for service, cable approach and the conditions the equipment will experience. Indoor and outdoor placement are different requirements; an enclosure material or a product photograph does not establish an outdoor protection rating.

Ask for the specific installation manual, mounting requirements, operating temperature range and any environmental restrictions that apply to the ordered version. Review clearances and service access with the installer. The objective is to ensure that the installation fits the documented product requirements rather than relying on a rendering or a generic battery dimension.

Future expansion also needs an explicit plan. Ask whether the proposed battery supports parallel operation, how many units are supported, what common hardware is required and how communication is coordinated. Do not infer that two batteries can be connected together solely because both carry a 48V-class label or have the same nominal capacity.

If later expansion is likely, include timing and expected capacity in the enquiry. Ask how the supplier manages compatible revisions, replacement units and changes in hardware or firmware. A purchasing team should understand which combinations are supported before promising customers that any additional battery can be added at any future date.

When the energy requirement is already above the useful range of the proposed 200Ah configuration, compare a larger system directly. The 15kWh HESS capacity and runtime guide explains the distinction between capacity variants and example backup calculations. Capacity selection should follow the load brief and approved architecture, rather than a preference for a familiar enclosure size.

7. Compare suppliers with a common procurement brief

A useful request for quotation gives each supplier the same problem to solve. State whether you need a separate battery or an integrated system, the destination market, expected order quantity, target delivery window and the intended application. Include the inverter information and the load assumptions used in the initial sizing discussion.

For an OEM project, separate essential requirements from preferences. Essential requirements might include a supported electrical interface, an agreed enclosure size or documentation needed for the destination market. Preferences might include label appearance, carton printing or a particular display layout. This distinction helps suppliers explain which changes affect development work, testing or lead time.

Ask the quotation to identify the model, configuration revision, included accessories, sample process and the point at which a configuration becomes fixed for production. Where customization is requested, confirm whether it changes the applicable evidence or support obligations. Approval of a label design is not the same as approval of the battery's technical configuration.

Use the customized energy storage enquiry route to frame requirements that go beyond a standard listed configuration. Provide a concise specification sheet rather than a collection of disconnected product screenshots. One agreed document helps both parties identify omissions and evaluate proposed alternatives consistently.

Commercial comparison should use the same scope. Record what is included in each quote and how packaging, accessories, delivery terms and sample evaluation are treated. A lower equipment price may reflect a narrower supply boundary. Price per nominal kilowatt-hour is informative only after the voltage, capacity basis and included configuration have been aligned.

8. Ask for evidence that matches the delivered model

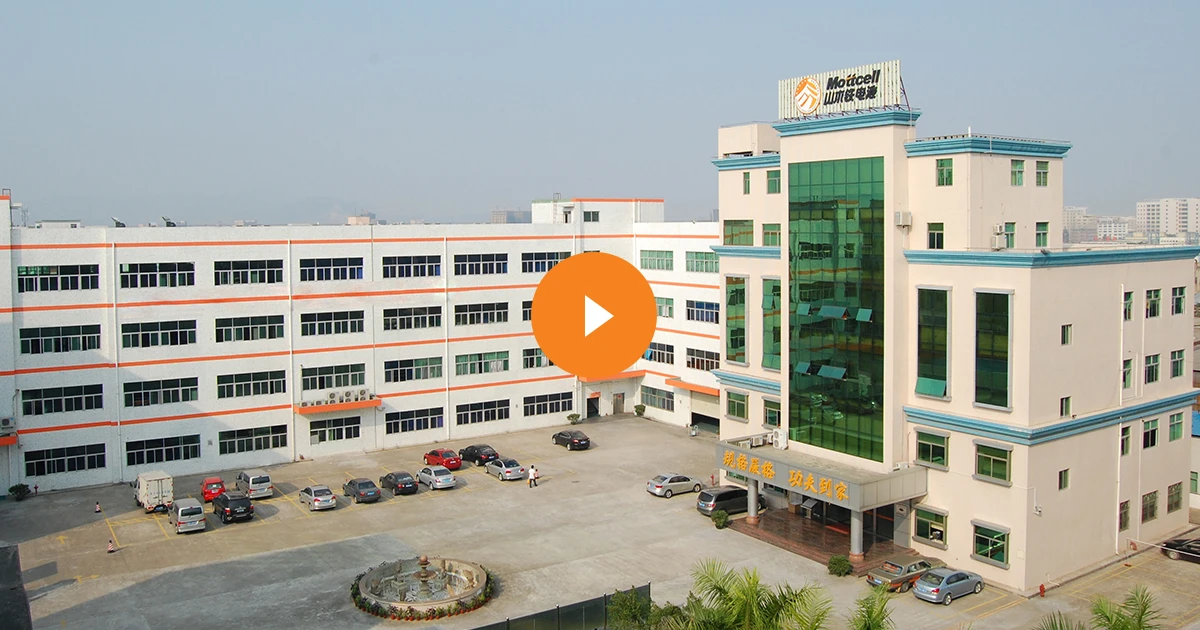

Evaluate the supplier's company background and the product evidence as related but separate topics. Mottcell's company information provides an introduction to its business. For a specific purchase, request documents that identify the legal supplier, the exact product or covered product family, and the applicable version of the configuration being ordered.

For certificates or test reports, check the model scope, issuing organization, report identity and the relationship to the proposed product. A certificate image on a general website cannot by itself establish that a particular battery-and-inverter combination meets every requirement for your destination. The responsible importer or installer should establish which requirements apply to the actual project.

Ask for warranty terms in a form that can be compared and retained. Clarify the covered product, duration, operating conditions, exclusions, evidence required for a claim and the repair or replacement process. If a throughput or remaining-capacity condition is used, obtain its definition. A headline warranty duration alone does not describe the customer's practical support route.

For a sample order, agree on the acceptance checklist before testing begins. Identify the configuration, serial numbers, inspection items, test method and acceptance criteria. Keep any observations tied to that sample and its conditions. A successful demonstration should not be described as independent certification or a universal result for every future configuration.

Maintain the approved documents with the order record and manage changes explicitly. If the proposed enclosure, cells, BMS or firmware changes between sample approval and production, ask what has changed and which checks need to be repeated. This creates a practical basis for traceability without assuming that every catalogue entry represents a permanently fixed bill of materials.

9. Prepare a concise 200Ah HESS enquiry

An effective enquiry can begin with the project type, location and required supply scope, followed by the exact inverter model and the expected energy and power requirements. State whether the request is for evaluation samples, distribution stock or a branded product programme. Include the quantity range so that technical and commercial discussions use the same context.

Attach a simple load brief that separates average consumption from simultaneous demand. List the intended essential circuits, target backup period and whether solar charging is expected during an outage. If those values are estimates, label them as estimates. This allows the supplier to explain which assumptions require further measurement or installer confirmation.

Finally, request a response that identifies the recommended configuration and any unresolved items. A useful response should make it possible to decide what to verify next: model documentation, inverter compatibility, a sample evaluation or a revised capacity option. The goal is an order specification that both parties understand, with clear responsibilities for supply, integration and support.

Frequently asked questions

Is a 48V 200Ah HESS battery 9.6kWh or 10.24kWh?

It depends on the actual nominal voltage. At 48.0V, the calculation is 9.6kWh; at 51.2V, it is 10.24kWh. Confirm the delivered model's voltage, rated energy and usable operating window rather than relying on the voltage-class label alone.

Can a 200Ah battery run a 5kW inverter continuously?

Capacity alone cannot answer that. Confirm battery current limits, operating voltage, inverter efficiency and any derating conditions. For example, 5kW AC at an assumed 94% efficiency requires approximately 104A at 51.2V before other losses, so a 100A entry needs careful evaluation.

What should I send to a 48V 200Ah HESS supplier?

Send the destination market, quantity, battery-only or integrated-system preference, exact inverter model, essential-load brief and installation conditions. Include OEM requirements and request model-specific specifications, compatibility evidence, warranty terms and an agreed sample acceptance process.
