As a pioneering AAA (10440, 10.0×44.0mm) lithium ion battery manufacturer, we specialize in integrated R&D, mass production, and global delivery of cylindrical lithium ion batteries across four core chemistries—LiCoO2, LiMn2O4, NCM (nickel-cobalt-manganese), and LiFePO4. With three intelligent production bases and a global technical service network, we serve B2B clients including consumer electronics brands, power tool manufacturers, smart meter providers, and medical device developers. Our core competitiveness lies in multi-system compatibility, material innovation, smart manufacturing, and extreme environment adaptability—setting industry benchmarks for AAA lithium ion battery performance, safety, and production efficiency.

Core Manufacturing Capabilities: Scale & Versatility

 Multi-Chemistry System Production Platform

We have built dedicated production lines for four mainstream lithium ion battery systems, enabling customized manufacturing for diverse application requirements:

LiCoO2 System (High Energy Density): Nominal voltage 3.7V, capacity 300-350mAh, energy density up to 750Wh/L—optimized for consumer electronics (wireless earbuds, portable cameras) requiring compact size and long runtime. Adopts high-purity cobalt acid lithium precursors (≥99.9% purity) with sphericalization treatment (D50 particle size 8-12μm) to enhance electrode stacking density.

LiMn2O4 System (High Rate Performance): Nominal voltage 3.7V, 10C continuous discharge capability, cycle life ≥1200 cycles (80% retention)—ideal for power tools, emergency flashlights, and remote control toys. Features manganese-based spinel structure modification with 0.5mol% zinc doping to improve structural stability at high temperatures.

NCM System (Balanced Performance): NCM 523/622/811 ratios optional, nominal voltage 3.6V, capacity 320-380mAh, energy density 720-780Wh/L—suitable for smart wearables and IoT devices needing both high capacity and long cycle life. Utilizes gradient nickel content design to balance energy density and safety.

LiFePO4 System (High Safety & Longevity): Nominal voltage 3.2V, capacity 250-300mAh, cycle life ≥2000 cycles, operating temperature -40℃ to 70℃—targeted for industrial sensors, smart meters, and medical equipment requiring extreme reliability.

Smart Manufacturing & Scale Production

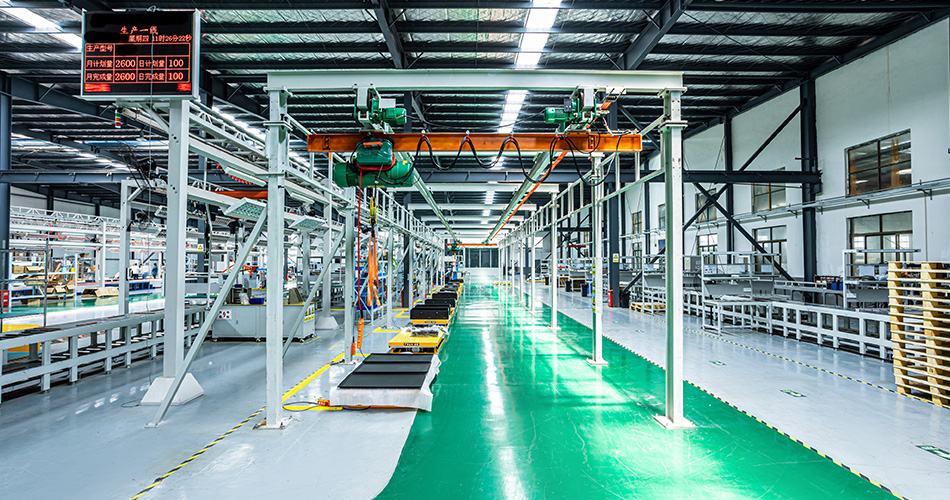

Production Bases & Capacity: Three intelligent factories located in Guangdong, Zhejiang, and Vietnam, equipped with 28 automated production lines (German Manz & Japanese Komatsu technology) and annual capacity of 36 million units. The Zhejiang base is certified as a "National Intelligent Manufacturing Demonstration Factory" and "Zhejiang Future Factory" with 95% production automation rate.

Key Process Innovations:

Electrode Preparation: Aerosol jet printing technology for ordered conductive network layout, increasing electrode surface density by 26% while maintaining 86% porosity.

Assembly Process: Laser welding with precision ±0.01mm, pressure-controlled cell sealing to ensure moisture resistance (≤10ppm water content) and gas tightness.

Quality Control: AI-powered in-line inspection system covering 120+ quality indicators—including impedance monitoring (error ≤0.3mΩ), voltage uniformity (≤2mV), and electrode defect detection (detection rate 99.97%).

Green & Low-Carbon Production System

Environmental Certifications: All bases hold ISO 14001:2015, ISO 45001:2018, and national "Green Factory" certifications. The Zhejiang base has achieved international carbon neutrality certification, with 100% renewable energy power supply (solar + wind).

Efficient Resource Utilization:

Closed-loop water circulation system with reverse osmosis purification, achieving 99.5% water reuse rate.

Waste gas treatment via catalytic combustion + activated carbon adsorption, reducing VOC emissions to ≤0.03t/a.

Cathode material recovery line with 98% metal recycling rate (cobalt, nickel, manganese), compliant with EU EPR regulations.

Low-Consumption Production: Wet metallurgy-vapor deposition integrated production line reduces cathode material manufacturing energy consumption by 41% compared to traditional processes, lowering unit production cost by 12%.

Technological Innovation: Material & Performance Breakthroughs

Cathode Material Modification

Nanostructure Optimization: Adopts sol-gel method to prepare nano-scale γ-MnO2 for LiMn2O4 system, increasing specific surface area to 82m²/g (300% higher than traditional EMD) and improving ion diffusion efficiency by 32%.

Interface Coating Technology: Atomic Layer Deposition (ALD) of 2nm Al2O3 coating on cathode surfaces, reducing interface impedance by 18% and extending cycle life by 40% (85% capacity retention after 500 cycles).

High-Entropy Alloy Composite: Incorporates 10% NCA ternary material into LiCoO2 system via Hybrid Layer technology, advancing 12% of capacity release to the 2.5V+ discharge platform and enhancing practical runtime by 15%.

Electrolyte System Upgrade

High-Concentration Electrolyte: Optimized formula with 15wt% fluoroethylene carbonate (FEC) addition, expanding electrochemical window to 4.8V vs Li/Li⁺ and improving high-temperature stability (92.3% capacity retention after 1000 cycles at 55℃).

Low-Temperature Adaptation: Modified electrolyte with mixed carbonate solvents (ethylene carbonate + dimethyl carbonate = 1:3 ratio), enabling 78.5% capacity retention at -20℃ and 65% at -30℃—suitable for outdoor equipment in cold regions.

 Safety Structure Design

Dual-Protection Mechanism:

Internal: Pressure relief valve (activation pressure 1.2-1.5MPa) + PTC thermistor (trigger temperature 85℃) to prevent overheating and short-circuit.

External: Flame-retardant ABS casing with V0 flammability rating and impact-resistant structure (passes 1.5m drop test).

Thermal Runaway Prevention: High-concentration electrolyte system raises thermal decomposition onset temperature to 162℃ (27℃ higher than industry standard), with maximum temperature rise rate reduced to 24℃/s.

Global Compliance & Quality Assurance

Comprehensive Certification Matrix:

Safety: UN38.3, UL 1642, IEC 62133:2017, CE-LVD, KC, PSE.

Environmental: RoHS 3.0, REACH SVHC (233 substances), ISO 14064 carbon footprint verification.

Industry-Specific: FCC Part 15B (US), TELEC (Japan) for wireless devices; medical device compliance with ISO 13485.

Quality Management System: Implements strict IQC-PQC-FQC full-process control, with batch traceability covering raw materials, production, and delivery. Each battery undergoes 28 quality tests including cycle life, temperature cycling, and short-circuit resistance.

Typical Application Cases

Consumer Electronics (Global Brand): 350mAh LiCoO2 AAA batteries for wireless earbuds, monthly supply 2 million units. Features ultra-low self-discharge (≤0.8%/month) and 4-hour fast charge capability.

Power Tools (European Manufacturer): 320mAh LiMn2O4 AAA batteries with 10C discharge rate, used in cordless screwdrivers. 1200-cycle lifespan and -20℃ to 60℃ operating range.

Smart Meters (Asian Utility Provider): 280mAh LiFePO4 AAA batteries, 5-year standby time (≤1.0% monthly self-discharge) and IP68 waterproof design. Annual supply 1.5 million units.

Medical Devices (US Brand): 300mAh NCM 622 AAA batteries for portable blood glucose meters, ≤10ppb impurity content, sterile packaging, and batch traceability documentation.

Why Partner With Our AAA Lithium Ion Battery Manufacturer?

Multi-System Versatility: One-stop manufacturing for four core chemistries, eliminating the need for multiple suppliers for diverse application needs.

Tech Leadership: Patented material modification and electrolyte optimization technologies, delivering industry-leading energy density and environmental adaptability.

Scale & Reliability: 36 million units/year capacity, smart factories with 95% automation rate, and dual-source raw material supply ensuring 99.9% delivery stability.

Global Compliance: Full certification coverage for 60+ countries/regions, simplifying market access for client products.

Customization Capability: Flexible adjustment of capacity (250-380mAh), voltage (3.2V/3.6V/3.7V), and performance parameters, with 15-20 days sample development cycle.

We are committed to driving innovation in the AAA lithium ion battery industry through material science and smart manufacturing. Contact us today to request custom samples, access detailed technical datasheets, or discuss bulk production partnerships. Let’s power your global products with high-performance, safe, and cost-effective AAA lithium ion batteries.
