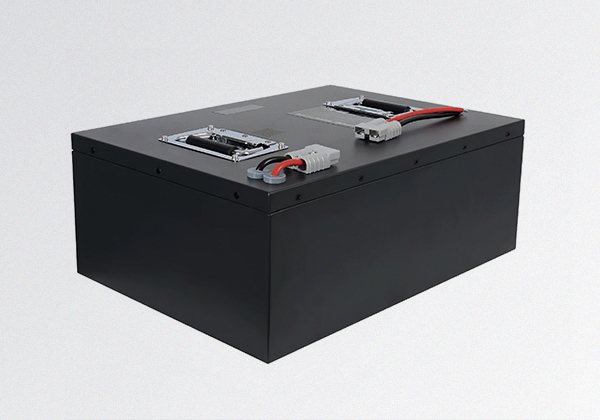

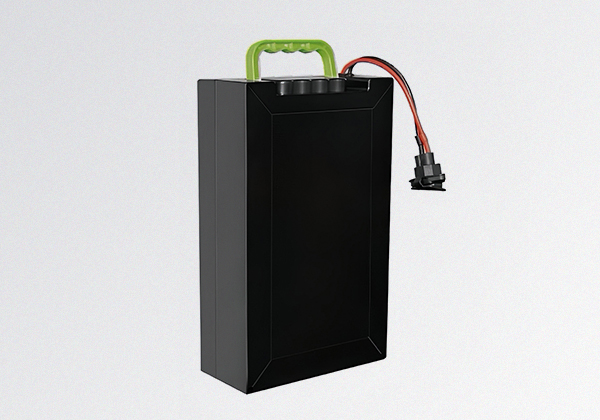

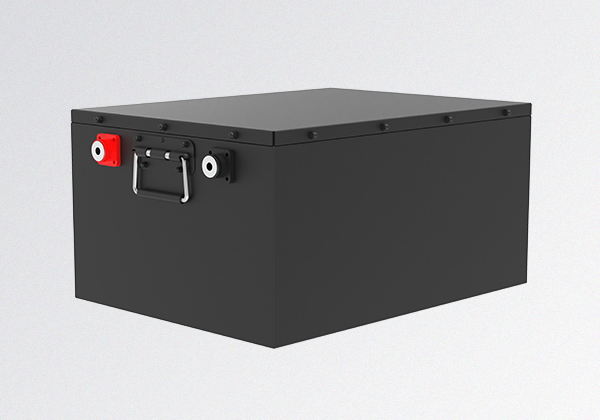

Lightweight and long-range lithium battery for e-bikes and e-motorcycles. High discharge rate and customizable—power your ride further.
| Model | 48V15Ah | 48V30Ah | 64V30Ah | 64V75Ah | 72V75Ah | 72V105Ah |
| Nominal Voltage | 48V | 48V | 64V | 64V | 73.6V | 73.6V |
| Nominal Capacity | 15Ah | 30Ah | 30Ah | 75Ah | 75Ah | 105Ah |
| Energy | 720Wh | 1440Wh | 1920Wh | 4800Wh | 5520Wh | 7728Wh |
| Cell | 15Ah | 15Ah | 15Ah | 15Ah | 15Ah | 105Ah |
| Cycle life | >2000 cycles | >2000 cycles | >2000 cycles | >2000 cycles | >2000 cycles | >2000 cycles |
| Charging Performance | ||||||
| Standard Charging | 3A | 3A | 6A | 15A | 15A | 20A |
| Fast Charging | 10A | 15A | 15A | 30A | 30A | 50A |
| Max Charging Voltage | 54.75V | 54.75V | 73V | 73V | 73V | 83.95V |
| Charging Temp Range | -5-55°c | -5-55°c | -5-55°c | -5-55°c | -5-55°c | -5-55°c |
| Discharging Performance | ||||||
| Standard Discharging | 3A | 6A | 6A | 15A | 15A | 20A |
| Fast Discharging | 15A | 20A | 20A | 60A | 50A | 50A |
| Super Fast Discharging | 20A(<20mins) | 30A(<55mins) | 30A(<15mins) | 80A(<15mins) | 75A(<15mins) | 80A(<15mins) |
| Peak Discharging | 60A(0.5s) | 60A(300ms) | 60A(<300ms) | 100A(<10s) | 100A(<10s) | 100A(<10s) |
| Discharging Temp Range | -20°c-60°c | -20°c-60°c | -20°c-60°c | -20°c-60°c | -20°c-60°c | -20°c-60°c |
| Driving Range | 45Km(25Km/h) | 90Km | 110Km(40Km/h) | 120Km(55Km/h) | 120Km(55Km/h) | 120Km(50Km/h) |
| Appearance Performance | ||||||
| Dimensions(L*W*H) | 300*185*82mm | 182*155*285mm | 220*160*310mm | 410*330*175mm | 460*330*175mm | 550*300*250mm |
| Weight | 5.5Kg | 10.3Kg | 16.4Kg | 37.7Kg | 42.6Kg | 59.2Kg |
| Charging Terminal | Pin shaped terminal | Pin shaped terminal | Pin shaped terminal | Anderson | Anderson | Anderson |
| Discharging Terminal | Pin shaped terminal | Pin shaped terminal | Pin shaped terminal | Anderson | Anderson | Anderson |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Case Material | ABS | ABS | Steel Case | Steel Case | Steel Case | Steel Case |
| Communication Performance | ||||||
| CAN II | / | / | Reserved | Reserved | Reserved | Reserved |
| RS485 | / | / | Reserved | Reserved | Reserved | Reserved |
| UART | / | / | Reserved | Reserved | Reserved | Reserved |
| LCD Display | / | / | Reserved | Reserved | Reserved | Reserved |
| Bluetooth | / | / | Reserved | Available | Available | Available |
| GPS Port | / | / | Reserved | Reserved | Reserved | Reserved |
| IOT Port | / | / | Reserved | Reserved | Reserved | Reserved |

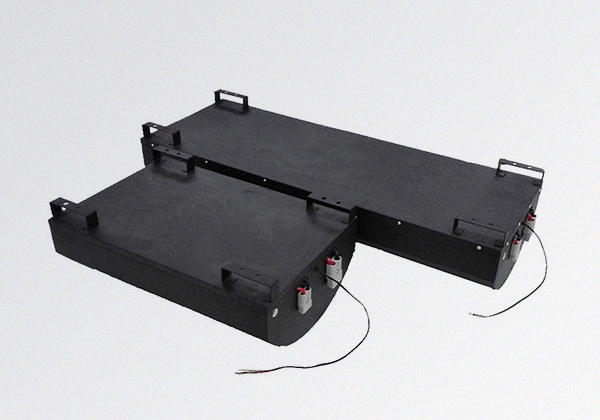

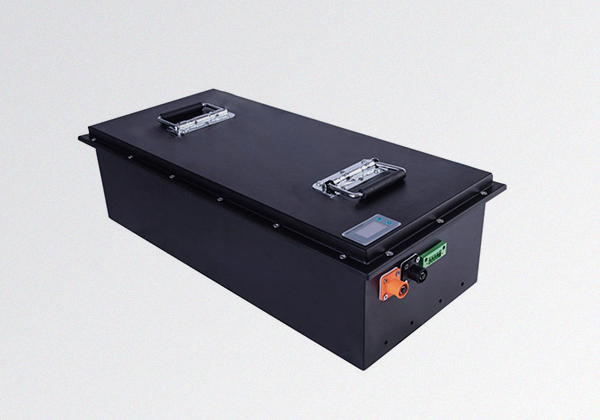

LFP battery system for golf carts. Safe, long-lasting, and a perfect lead-acid replacement—enhance range and performance with ease.
| Model | Capacity(Ah) | Capacity(Wh) | BMS (Opetional) | Charging /Discharging Current | Instantaneous Current | Housing Material | Dimensions(mm) | Weight(Kg) |
| 51.2V100Ah | 100Ah | 5120 | 16S Hardware 16S Software | 0~200A/0~200A | 400A/3S | ABS | L523*W269*H222 | 38 |
| 51.2V105AH | 105Ah | 5040 | 16S Hardware 16S Software | 0~200A/0~200A | 210A/10S 250A/1S | Sheet Metal | L460*W335*H247 | 50 |
Built for marine use—anti-corrosion, vibration-resistant, and high output. Reliable lithium power for yachts, boats, and offshore vessels.
| Model | 12V 60Ah | 12V 70Ah | 12V 80Ah |
| Nominal Voltage | 12.8V | 12.8V | 12.8V |
| Max Charging Voltage | 14.6V | 14.6V | 14.6V |
| Discharge Cut-off Voltage | 10.5V | 10.5V | 10.5V |
| Capacity | 60Ah | 70Ah | 80Ah |
| Battery Energy | 768Wh | 896Wh | 1024Wh |
| Terminal Type (Standard/Thick) | Thick | Thick | Thick |
| Cold Cranking Amps | 640A | 720A | 800A |
| Dimensions (L*W*H mm) | 242*175*190 | 278*175*190 | 315*175*190 |
| Model | 12V 100Ah | 12V 200Ah | 24V 100Ah |
| Capacity(Wh) | 1280 | 2560 | 2560 |
| Charging/Discharging Current | 0-100A | 0-200A | 0-100A |
| Instantaneous Current | 200A/3S | 400A/3S | 200A/3S |
| Recommended Charging Current | 0.5C | 0.5C | 0.5C |
| Continuous Current | 3C | 3C | 3C |
| Peak Current | 5C-5S | 5C-5S | 5C-5S |
| Dimensions (L*W*H mm) | L332*W172*H220 | L531*W206*H217 | L531*W206*H217 |
| Weight | 11Kg | 21kg | 21Kg |

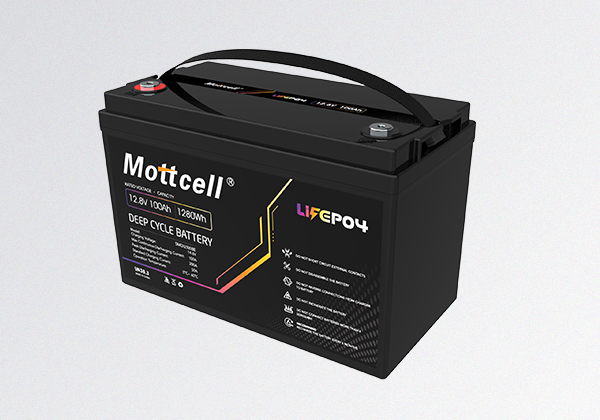

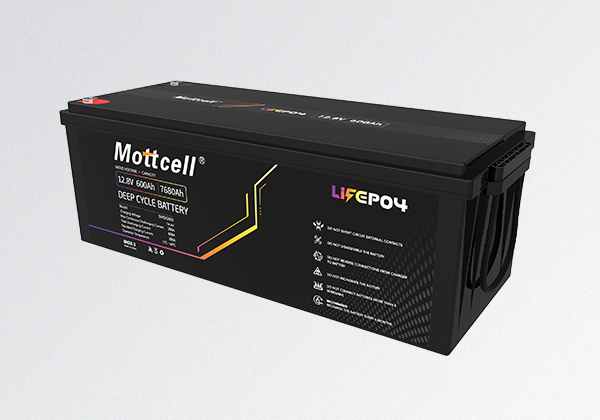

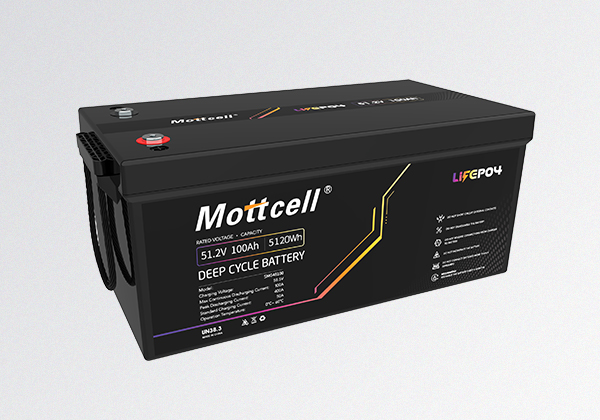

Solar-ready and off-grid capable, easy to maintain and install, smart BMS. Built for rugged outdoor use—safe, reliable power for every RV adventure.
| Model | Capacity(Ah) | Capacity(Wh) | BMS (Opetional) | Charging/Discharging Current | Instantaneous Current | Recommended Charging Current | Continuous Operating Current(A) | Housing Material | Dimensions(mm) |
| SMG1250 | 50AH | 640 | 4S Hardware 4S Software | 0~50A | 100A/3S | 0.5c | 50A | ABS | L197*W132*H175 |
| SMG12100 | 100Ah | 1280 | 4S Hardware 4S Software | 0~100A | 200A/3S | 0.5c | 100A | ABS | L332*W172*H220 |
| SMG24100 | 100Ah | 2560 | 8S Hardware 8S Software | 0~100A | 200A/3S | 0.5c | 100A | ABS | L531*W206*H217 |
| SMG12200 | 200Ah | 2560 | 4S Hardware 4S Software | 0~200A | 400A/3S | 0.5c | 200A | ABS | L531*W206*H217 |
| SMG12300 | 300Ah | 3840 | 4S Hardware 4S Software | 0~300A | 600A/3S | 0.5c | 300A | ABS | L522*W238*H221 |
| SMG12400 | 400Ah | 5120 | 4S Hardware 4S Software | 0~200A | 400A/3S | 0.5c | 200A | ABS | L522*W269*H221 |
| SMG24200 | 200Ah | 5120 | 8S Hardware 8S Software | 0~200A | 400A/3S | 0.5c | 200A | ABS | L523*W269*H222 |
| SMG48100 | 100Ah | 5120 | 16S Hardware 16S Software | 0~200A | 400A/3S | 0.5c | 100A | ABS | L523*W269*H222 |
| SMG12600 | 600AH | 7680 | 4S Hardware 4S Software | 0~300A | 600A/3S | 0.5c | 200A | ABS | L635*W244*H222 |
