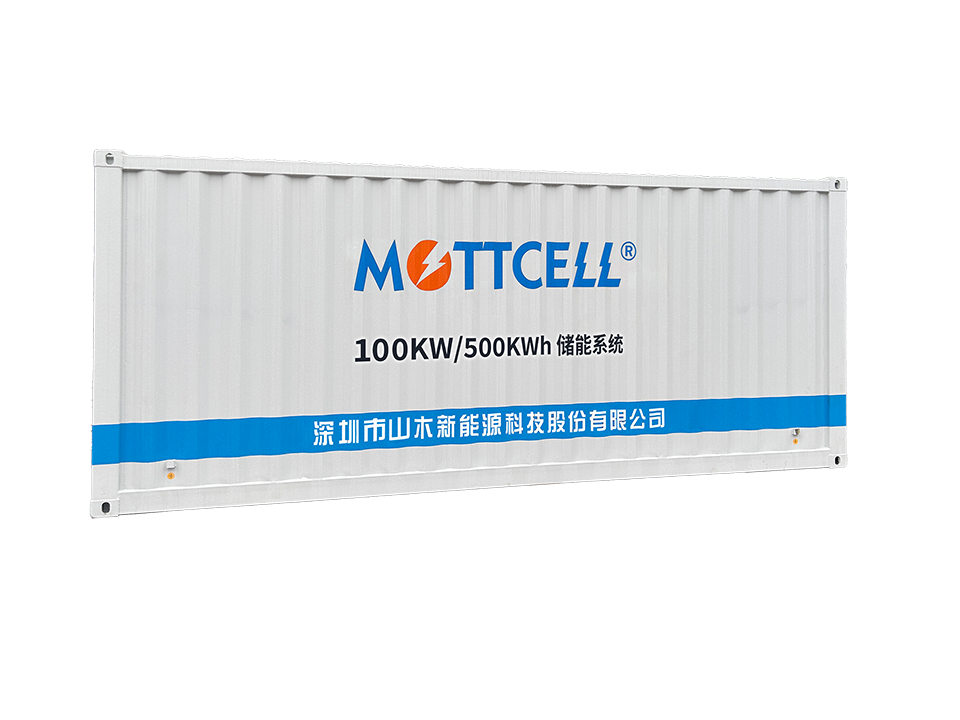

500KWh–5MWh containerized ESS for parks, plants, and data centers. Multi-mode ready—empowering smart grids and carbon-neutral goals.
| Model |
110KW-500KWh |
150KW-1MWh |
250KW-2MWh |
500KW-3MWh |
5MWh(DC Container) |
| Battery Capacity | 840Ah/598.4V (502.6KWh) | 1680Ah/598.4V (1005.3KWh) | 3360Ah/598.4V (2010.6KWh) | 4480Ah/704V (3153.9KWh) | 3768Ah/1331.2V（5015.9KWh） |
| Rated Power | 100KW | 150KW | 250KW | 500KW | 2500KW(DC Output) |
| Peak Power | 110KW | 165KW | 275KW | 550KW | 2500KW(DC Output) |
| Battery Voltage Range | 467.5-682.5V | 467.5-682.5V | 467.5-682.5V | 550-803V | 1164.8-1476.8V |
| Rated Current | 144A | 216A | 361A | 722A | 1878A |
| Max. Output | 159A | 238A | 397A | 794A | 1878A |
| Dimensions (W*D*H mm) | 6058*2438*2591 | 6058*2438*2591 | 12192*2438*2896 | 12192*2438*2896 | 6058*2438*2896 |
| Weight (Kg) | 11500 | 16200 | 25800 | 32000 | 5000 |
| Battery Type | LifePo4 | LifePo4 | LifePo4 | LifePo4 | LifePo4 |
| AC Output | 320-460V | 320-460V | 320-460V | 320-460V | / |
| Wireless Communication | Supports Wi-Fi, Bluetooth, and mobile APP connectivity | ||||
| Communication | RS485/CAN | RS485/CAN | RS485/CAN | RS485/CAN | RS485/CAN |
| Cycle Life | After 3,000 cycles, the remaining capacity remains above 80%. | ||||
| Protection Features | Built-in protections: over-temperature, over-voltage, over-current, overcharge, over-discharge, short-circuit, and overload | ||||
Discharging Temperature Range (recommended: 20°C to 30°C) | -20°C to 50°C | -20°C to 50°C | -20°C to 50°C | -20°C to 50°C | 0-55°c |
Charging Temperature Range (recommended: 20°C to 30°C) | -5°C to 50°C | -5°C to 50°C | -5°C to 50°C | -5°C to 50°C | -30°c-55°c |
| Storage Temperature Range | 0°C to 45°C | 0°C to 45°C | 0°C to 45°C | 0°C to 45°C | 0°C to 45°C |
| Certifications | IEC UN38.3 MSDS ROHS | IEC UN38.3 MSDS ROHS | IEC UN38.3 MSDS ROHS | IEC UN38.3 MSDS ROHS | IEC UN38.3 MSDS ROHS |
| Thermal Management Method | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Liquid Cooling |
